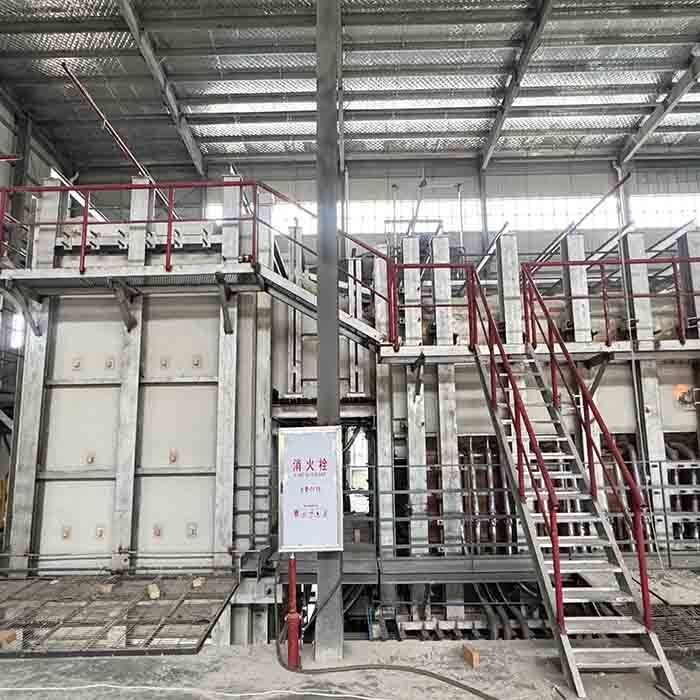

Customizable Glass Melting Furnace with Refractory Material and Combustion System

 Customizable Glass Melting Furnace with Refractory Material and Combustion System

1. Brief Description

Glass melting furnace refers to the thermal equipment used in glass manufacturing to melt glass mixtures. Mix the powder prepared according to the glass composition and the added clinker (broken glass) at high temperature in the kiln to melt, clarify, and form a glass liquid that meets the forming requirements. Glass manufacturing has a history of 5000 years, and the manufacturing method of using firewood as fuel and melting glass materials in clay jars has continued for a long time. In 1867, the Siemens brothers in Germany built a continuous coal-fired tank furnace. After 1945, glass melting furnaces developed rapidly.

The melting process is divided into five stages as following, each section has its inner connection, affecting each other. If one stage has imperfect performance, it will influence the next stage, and ultimately affect the quality of glass.

2. Melting process stages:

          Silicate forming

The mixture is converted into a sintered material composed of silicates and silica.

Glass liquid forming

In this stage, the sinter will be melting and the silicate and SiO2 in sinter will change to flint glass liquid with a plenty of bubbles.

Clearing

The glass liquid is continuously heated, and its viscosity is reduced with plenty of gaseous sundries released, which should eliminate the visible bubbles with the pool of liquid.

Homogenization

The glass liquid is kept at high temperature for a long time, the ripple eliminates by diffused function and homogenizes as a whole.

          Cooling

Adjust the viscosity to be suitable for forming.

3. Features

1)Design: Double-shell structure with refractory materials (e.g., 1760°C-resistant bricks) to retain heat;

2)Automation: Optional stirrers (1300 RPM) and remote-controlled lifting mechanisms enhance process control‌

3)Application: Used in glass, ceramics, and enamel industries for lab-scale or mass production‌.

 4. Furnace melting technology system

Furnace melting technology includes temperature, pressure, bubbling, glass liquid level, fuel, reversing system etc.

FAQ

Q: Who we are?

A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.

Q:Can you offer design service?

A: Yes, we could design full solution drawings as per your requirements.

Q: Do you offer installation on site overseas?

A:Yes, we can provide our engineer to supervise the installation work on site or provide the the whole installation team on site to finish the project.
